Details

• Product Code：
  Product Description：


  外廓尺寸 Dimensions: 11990x2490x3535mm

  满载总质量 Gross vehicle weight:30900kg

  额定载质量 Payload:17855kg

  整备质量 Kerb weight:12850kg

  驱动形式 Drive type:8x4

  驾驶室 Cab:Full-floating high-top

  发动机 Engine:CA6DL1-28E3

  发动机功率 Engine power:280hp

  变速箱 Transmission:CA10TA190M (10-speed)

  驱动桥 Drive axle: 457

  速比 Gear ratio:4.111

  车架 Frame:300*80*(8+5)mm

  轮胎 Tire:11.00-20

  油箱 Fuel tank: 400L

  轴距 Wheel base: 2100+4700+1350mm

  车厢 Body: 9500mm

  最高车速 Maximum vehicle speed: 111km/h

  选装配置 Optional equipment: 310/330hp engine 310/330hp马力发动机



  推荐工况 Recommended operating conditions: With a maximum loading capacity of 45-60 t, it is recommended that the vehicle be used for long-distance logistics and transport of grains, building materials,and housewares.最大载重45-60吨，推荐长途物流运输，针对粮食，建材，家居类运输模式。

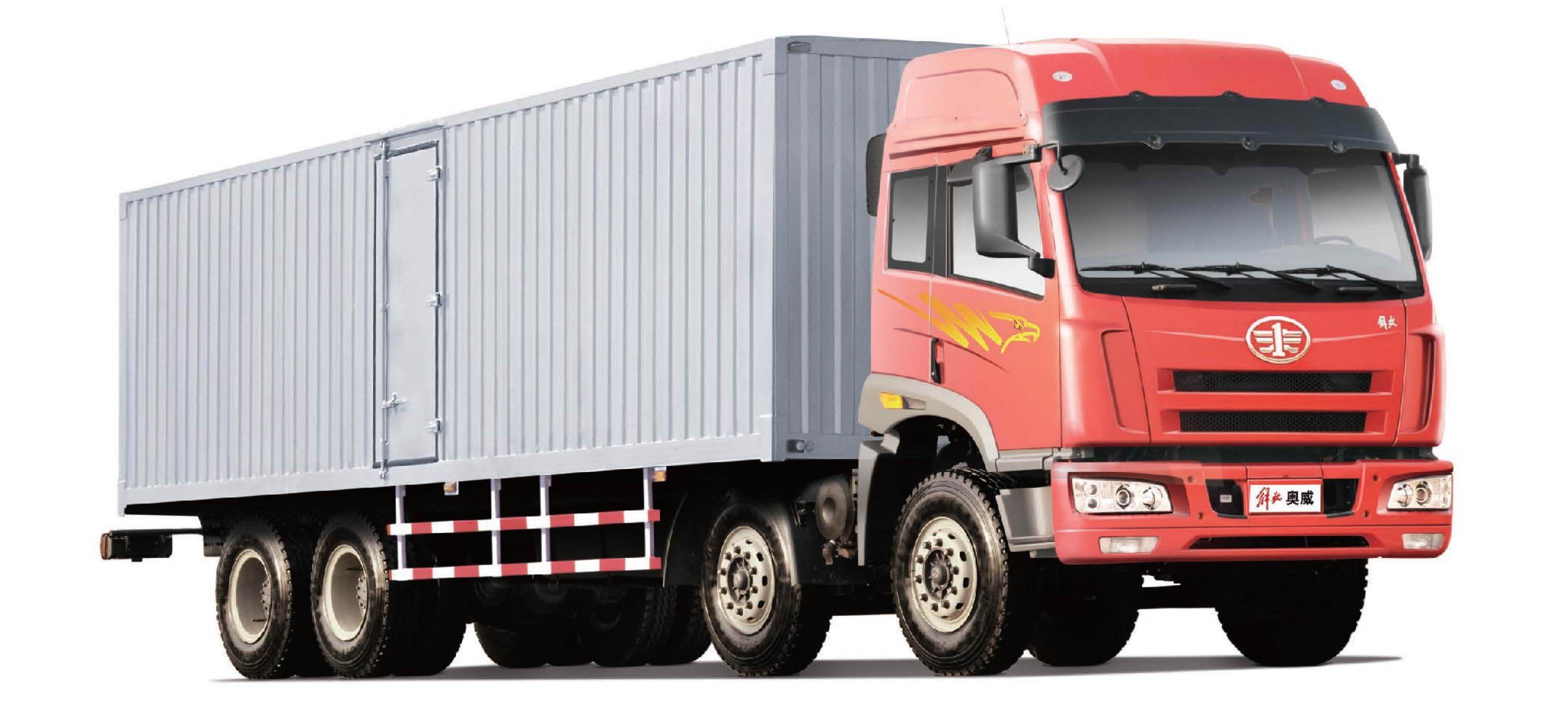

  The J5P 8x4 model is a heavy-duty product which has large market volume, good reputation of significant fuel saving , resistance to rollover, rich spare parts on market ,and strong overall competitiveness.J5P 8x4是一款市场保有量大，节油口碑显著，不易翻车，市场配件丰富，综合竞争力高的重型产品。



  It applies to various types of refitted flat truck , stake truck , livestock transport vehicle , van truck , wagon truck tanker, etc.适合改装各种平板，仓栅，畜禽，厢式，蓬式，邮政，罐类等。



  It has advantages such as low fuel consumption , low center of gravity, high vehicle speed , high reliability, and superior comfort.高可靠性，高舒适性，高车速，低油耗，低重心等优点。
